Industrial oil water separator filter

Product Description



Product Description

Industrial Compressor oil water separator

 Industrial oil water separator filter



Technical Parameter

 Inlet Air Pressure

0.6~1.0MPa

 Inlet Air Temperature

5°C~65°C

Initial Pressure Drop

≤0.003MPa

Remaining oil content in outlet air

≥99%





Product Features

1. 99% high efficiency

2. Large capacity allowed

3. Patent design

4. Low pressure drop

5. Easy maintenance

6. It can eliminate those contaminants from the tubes, such as the iron crumb     welding slag





SAYF Series water separatadopts our self-designed patent rotatas its inner core part. It can separate the oil water from the compressed air gather those decontaminants at the bottom to discharge them out.



oil water separator specification

Model

Air capacity
(Nm3/min)

Air over caliber

Height
(mm)

Drum Diameter
(mm)

Weight
(kg)

SAYF-1

1.2

G1"

480

108

18

SAYF-2

2.4

G1"

480

108

18

SAYF-3

3.6

G1"

480

108

18

SAYF-4.5

5

G1-1/2"

530

133

23

SAYF-6

6.8

G1-1/2"

530

133

23

SAYF-8

8.5

G2"

600

159

34

SAYF-10

10.9

G2"

600

159

34

SAYF-12

12.8

G2"

600

159

34

SAYF-15

16

DN65

705

159

42

SAYF-20

22

DN65

690

219

60

SAYF-25

26.8

DN80

860

219

68

SAYF-30

32

DN80

860

219

68

SAYF-40

43.5

DN100

970

273

107

SAYF-50

53

DN100

1070

325

131

SAYF-60

67

DN125

1110

325

136

SAYF-80

90

DN125

1195

325

141

SAYF-100

110

DN150

1370

377

183

SAYF-120

130

DN150

1390

412

190

SAYF-150

160

DN200

1580

462

261

SAYF-200

210

DN200

1790

562

362

SAYF-250

250

DN250

2065

612

438

SAYF-300

300

DN250

2150

662

491

SAYF-350

350

DN300

2230

662

524

SAYF-400

400

DN300

2240

712

571

SAYF-450

450

DN350

2490

812

741

SAYF-500

500

DN350

2500

812

751

Company Information

HangZhou SHANLI Purify Equipment Corporation was founded in 1997,shanli have near 20 years history in Compressed Air Dryer field.Our company already get many patents in Air Dryer technology,and shanli can independently design,developing,produciton and sales.Shanli already get lots of honor in domestic market in past years.Although Shanli just start to export goods to oversea market in recetantly years,but we believe that shanli will be your valued supplier in air dryer industry.

Hangzhou Shanli Purify Equipment Corporation’s enterprise spirit is “Sincere Dedication, Pursuit Excellence”. On basis of advanced product design, comprehensive quality guarantee, prompt pre-sales and after sales network, Shanli will reach the aim of business promotion with technology, quality and service.

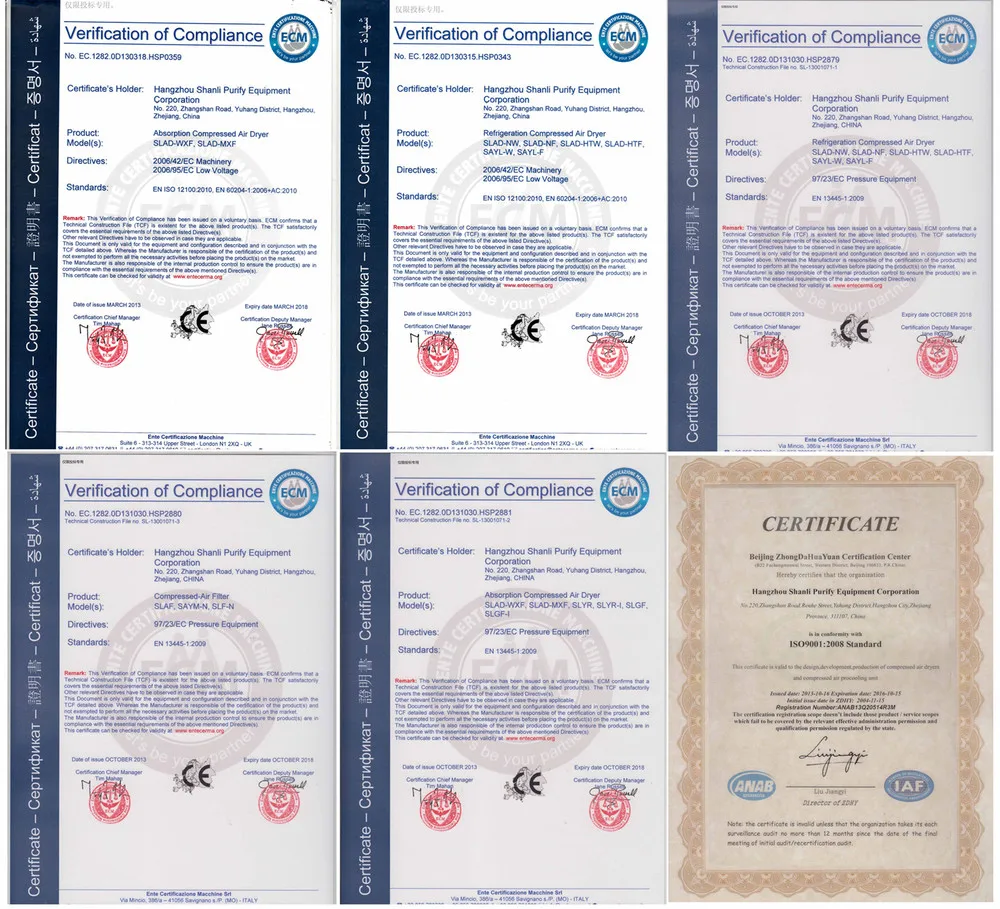

 License:
At present, it is awarded 18 product patents and also got through the CE certification, Production Licence and ISO9001 Quality System Certification in order to offer the best product service and the most impeccable pre-sale and after-sale service.

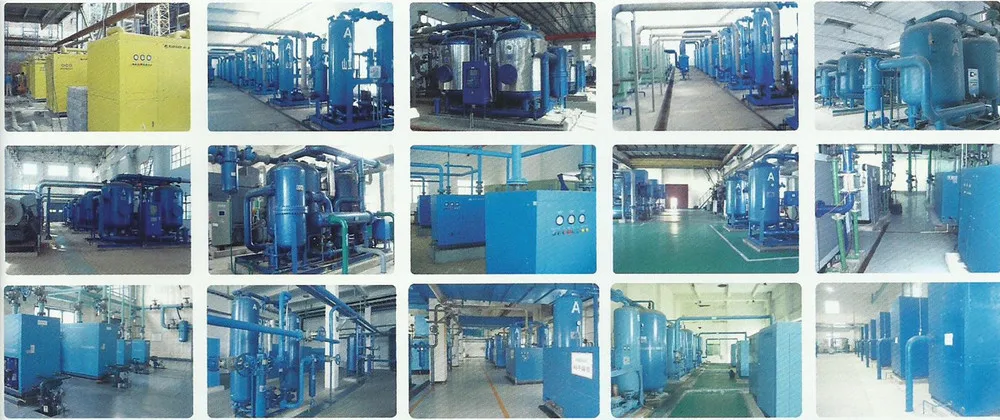

 Customer site images:

Where is shanli air dryer used for?
Shanli brand compressed air dryer is the after-treatment purification equipments for all kinds of the oil contented and oil-free compressor.The products are widely used in the electricity,shipbuilding,aerospace, electronic,metallurgy, machinery, auto manufacture,fossil oil, chemical industry, textile, chemical fiber,light industry, paper marking, rubber, instrument, food staff, air separation,cigarette, medicine, biology, daily chemical industry etc.
