Colorful Vermiculite Roof Tile Production Line

Colorful Vermiculite Roof Tile Production Line

    Unit Price: USD 49500 - 125000 / Set/Sets
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days
    Packaging: as customer requirem
    Productivity: 600 pieces an hour
    Brand: ZHONGTUO
    Place of Origin: China
    Supply Ability: 5 set/3 month
    Certificate: CE, ISO9001

Product Description

Colorful Vermiculite Roof Tile Production Line

We developed Colorful Vermiculite Roof Tile Production Line based on long time running and improvement. It is high-performance,stable, energy-efficient and easy operation.

Colorful Vermiculite Roof Tile Production Line is including five main parts:

1. Auto bottom glue spraying section

2.Auto stone coated section

3 .The first time drying section

4 .Auto face glue spraying section

5. The second time drying section

The detailed informations of Colorful Vermiculite Roof Tile Production Line

Auto bottom glue spraying section

1.Outside Dimension:800*1350*850mm(L*W*H)

2.Structure:Channel steel ,weldedTransmission:2.2 kw Variable-frequency adjustable-speed motor 0-32R/Min

3.Conveying device: Reciprocating chain conveys

4.Automatic glue spraying assembly with motor:0.06kw

5.Adsorption of dust removal equipment:1 set

6.Air Compressor:1 set 0.09m³

7.Airless spray glue pump:1 set

8.Automatic glue spraying gun:1 piece

9.Fill glue gun: 1 piece

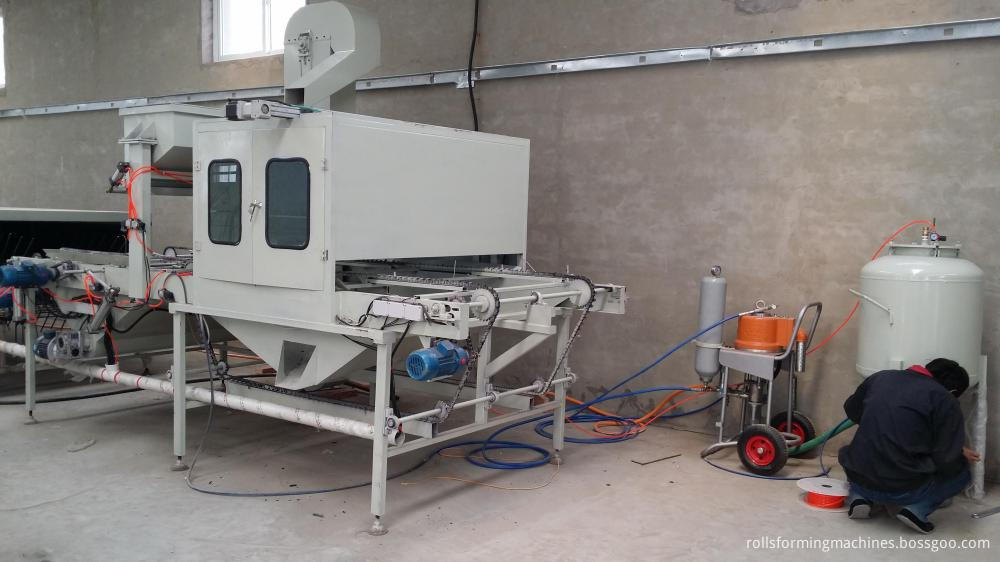

 Auto bottom glue spraying section

Auto stone coated section

1.Outside Dimension :3000*1850*700mm(L*W*H) Structure:Channel steel ,angle steel ,welded

2.Transmission:With glue spraying equipment compound chain transmit

3.Conveying device:Compound chain transmit

4.Automatic sand hopper:1 set (dimension 550*600*500mm)

5.Automatic rising machine:1 set(Rising height:1.9m Power:300kg/h)

Stone Coated Roof Production Line

drying section

1.Outside Dimension :25000*800*1200mm(L*W*H)

2.Structure:carbon steel welded Frame type heat preservation ,wall:fill up with heat preservation material which is bended with 1mm carbon steel

3.Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

4.Infrared fluorescent tube:50 pcs

5.Conveying device: Reciprocating chain conveys

6.Cool device:1 set

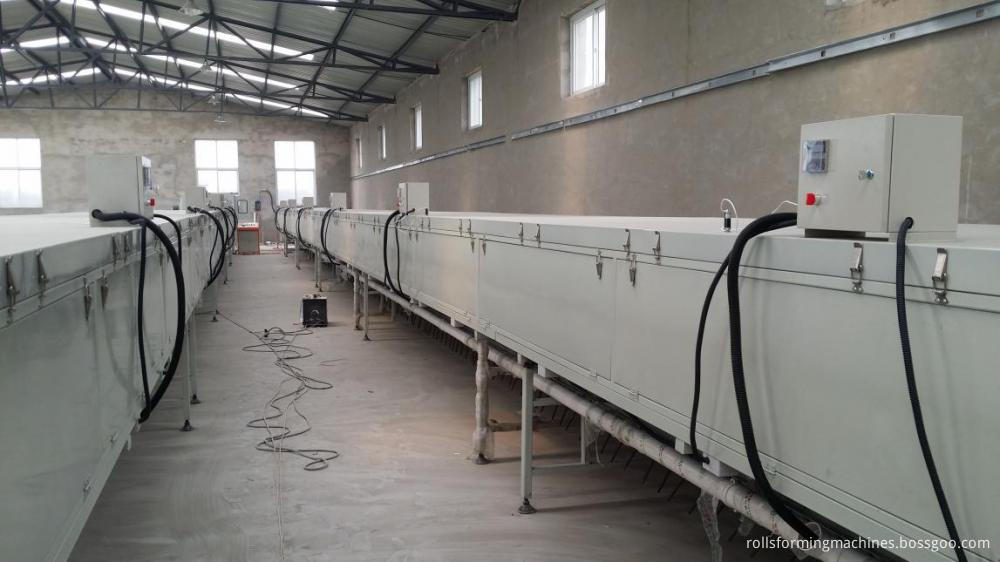

drying section1

Vermiculite Roof Production Line

the type of rool tile we can do:

Shingle

Classic

Roman


Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery time : 90 days

Container need: two 40 GP and one 40 HQ

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)

The video of Stone Coated Roof Production Line:

1. roof tile making mchine:



2. stone coated machine
